Stage 6

At suitable intervals along the line, measure the offsets to paths, boundaries and any other features you want to include on the plan.

Where paths, etc. are relatively straight, the distance between offsets can be fairly large, perhaps 5 metres or so.

Where necessary, more detailed features can be recorded by using closer distances between offsets.

Scroll down to see stage six of the plan.

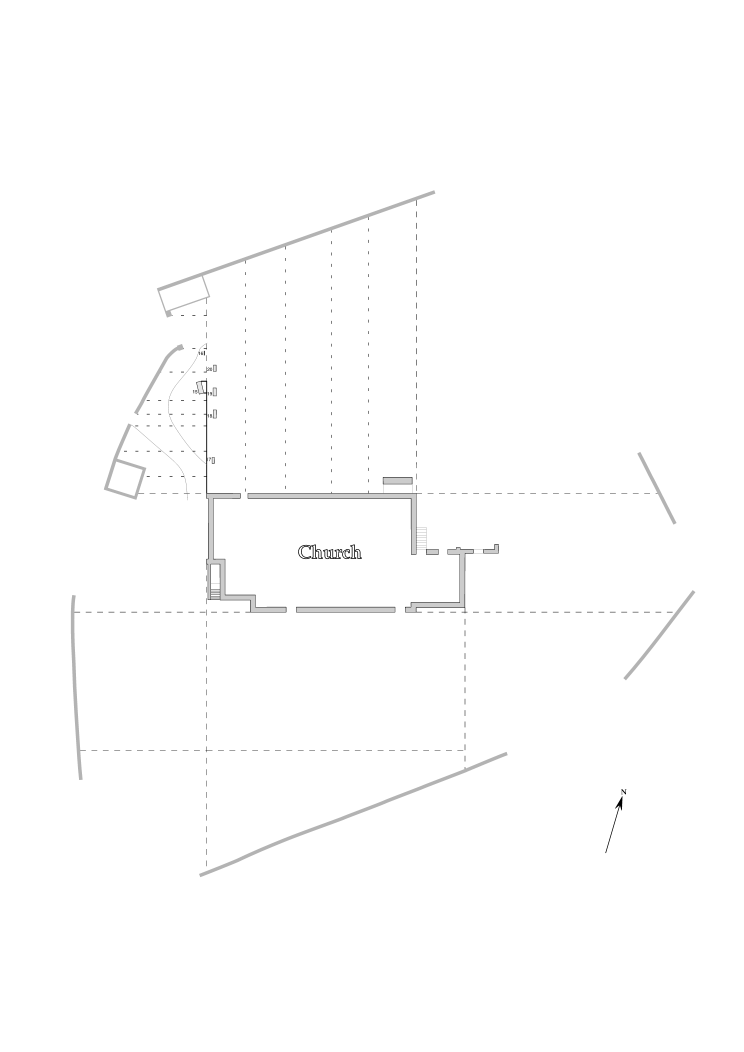

stage six of the plan
